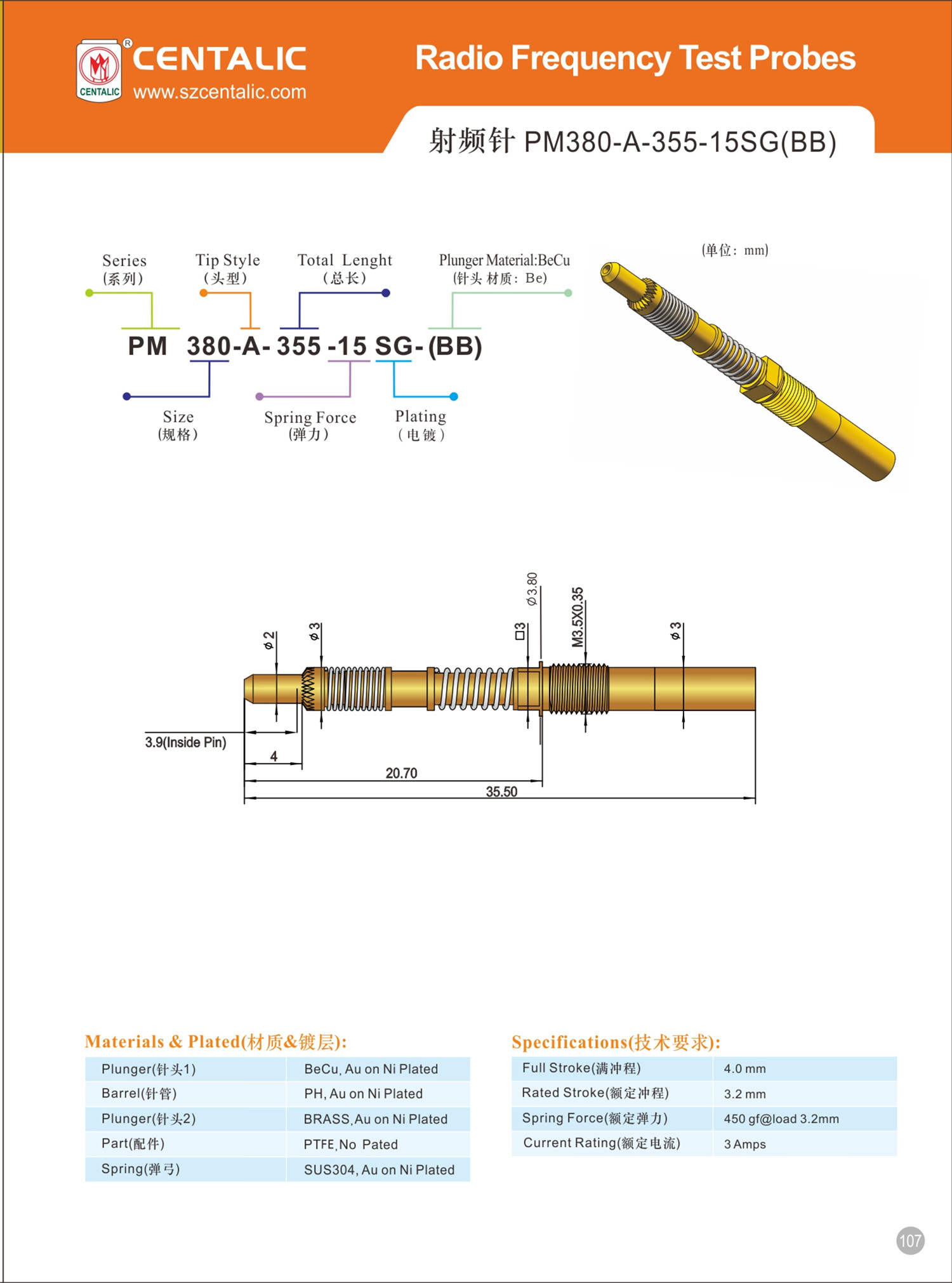

Materials & Plated：
Plunger 1：BeCu，Au on Ni Plated
Barrel：PH，Au on Ni Plated
Plunger 2：Brass，Au on Ni Plated
Part：PTFE，No Plated
Spring：SUS304，Au on Ni Plated
Electrical Spec.：
Full Stroke：4.0 mm
Rated Stroke：3.2 mm
Rated Force：450 gf@load 3.2mm
Current Rating：3 Amps
Radio Frequency probes are also called RF probes, mainly used for signal insertion, detection, and measurement output of high-frequency RF, RF and microwave modules, as well as electrical performance analysis of high-frequency circuit boards.
They are characterized by relatively concentrated signals that can pass through with low loss. ln the tests of high-speed digital circuit boards and microwave chips, there are very high requirements for the impedance and loss of RF probes.
RF probes are mostly customized because they are complex in structure, with multiple components and high added value.
Radio Frequency probes are also called RF probes, characterized by relatively concentrated signals that can pass through with low loss. ln the tests of high-speed digital circuit boards and microwave chips, there are very high requirements for the impedance and loss of RF probes.
RF probes are mostly customized because they are usually complex in structure, with multiple components and high added value.
RF probes are mainly used for signal insertion, detection, and measurement output of high-frequency RF, RF and microwave modules, as well as electrical performance analysis of high-frequency circuit boards.
