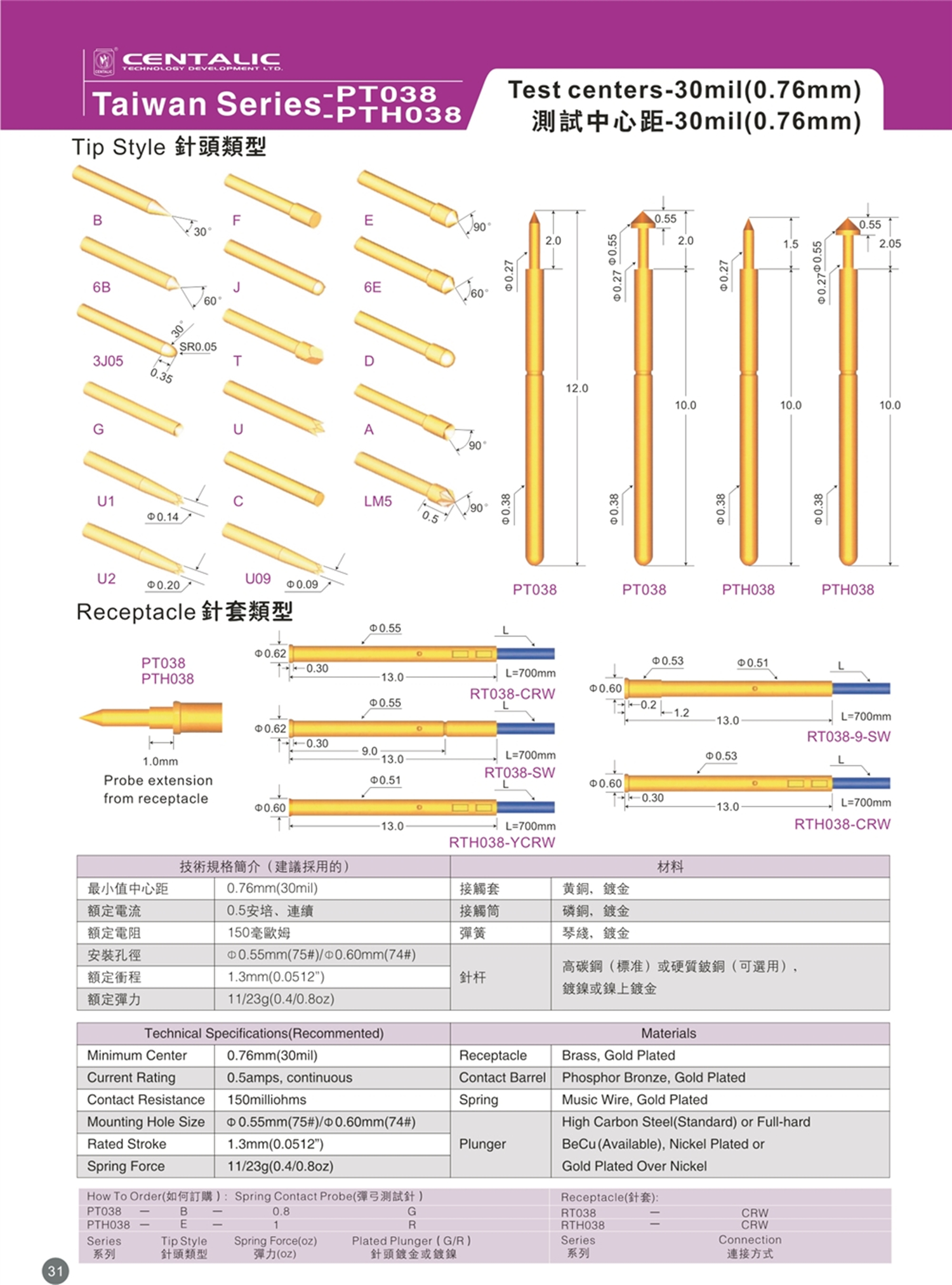

Technicial

Materials & Plated：

Plunger：Becu/SK4，Au on Ni Plated

Barrel：Ph/Br，Au on Ni Plated

Spring：SWP/SUS，Au on Ni Plated
Casing：Ph/Br，Au on Ni Plated

Electrical Spec.：
Pitch：0.76 mm(30 mil)

Rated Current：0.5 Amps，Continuous
Rated Resistance：180 mΩ
Mounting Hole Size：Φ 0.55 mm（75#）/Φ 0.60 mm（74#）

Rated Stroke：1.30 mm

Rated Force：11/23 gf(0.4/0.8 oz)

Introduction PCB spring probes are mainly used for PCB testing to determine defects in circuit continuity by comparing the resistance or capacitance between circuits. Usually, PCB spring probes are used with matching receptacles which have wires or no wires at the end.
