Materials & Plated：
Plunger 1：PTFE
Barrel：Brass，Ni Plated
Plunger 2：BeCu，Au on Ni Plated
Part：PTFE
Spring：SUS， No Plated
Electrical Spec.：
Current Rating：8A(30s)/5A(300s)
Contact Resistance：50 milohms
Specifications：
Full Stroke：4.67 mm
Rated Stroke：2.50 mm
Spring Force：200 gf@load 2.50 mm
Normality Condition：针杆1，2断开
Press Down：针杆1，2导通（下压2.0 mm）
Cable harness probe mainly used for: automotive, communication electronics, medical equipment, and automation testing.
Types of cable harness probes: threaded / non threaded, switch probes, high current probes, etc.

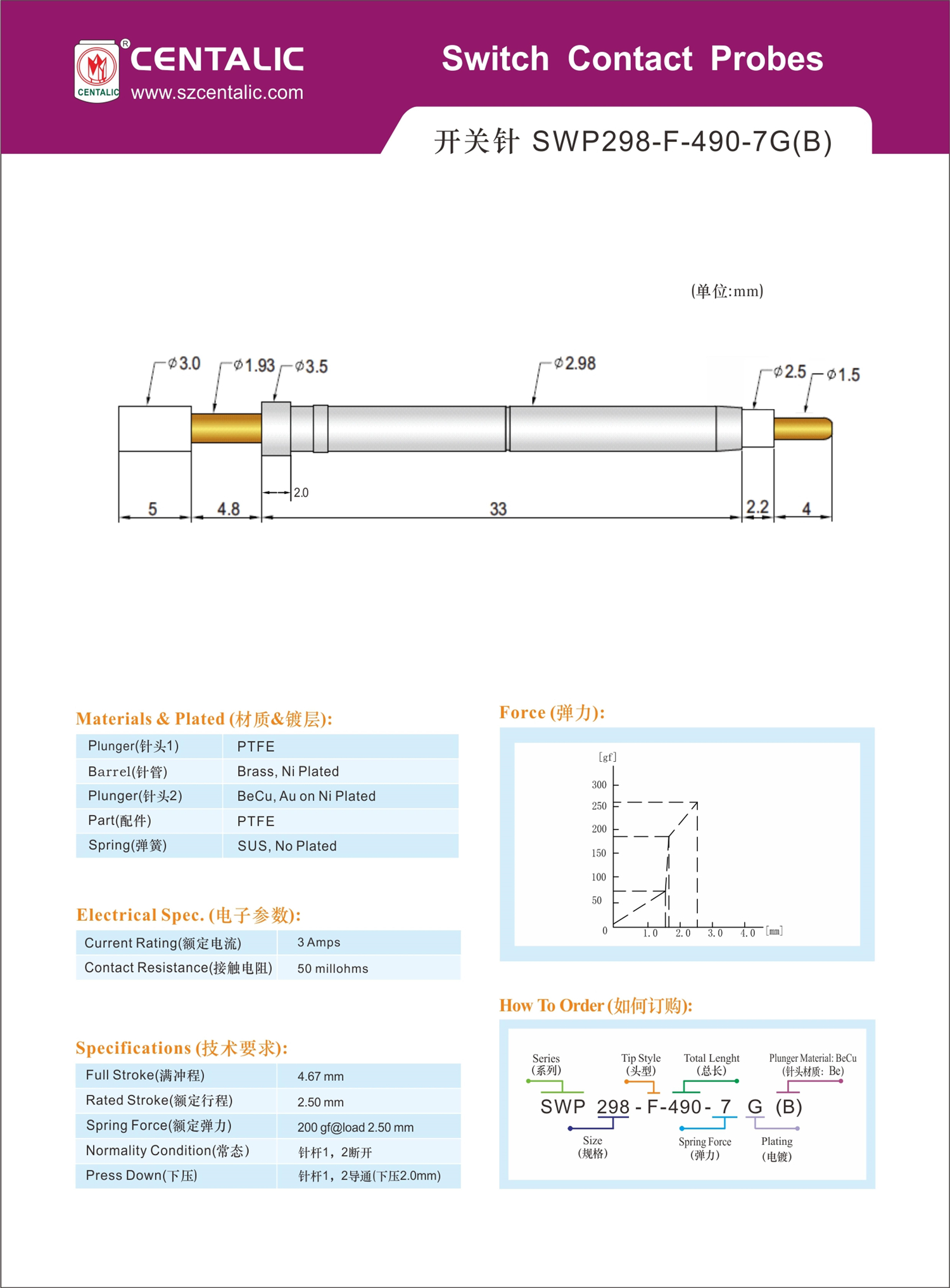

.jpg "2.SWP298-F-490-7G(B).jpg")
Cable harness probe is also called "automobile cable harness probe". Types of cable harness probes: threaded / non threaded, switch probes, high current probes, etc.
Cable harness probe is mainly used for automotive wiring harness testing and direct use, and some products are also used in automotive, communication electronics, medical equipment, and automation testing. Its product standards and requirements are higher than those of other series of test probes.
