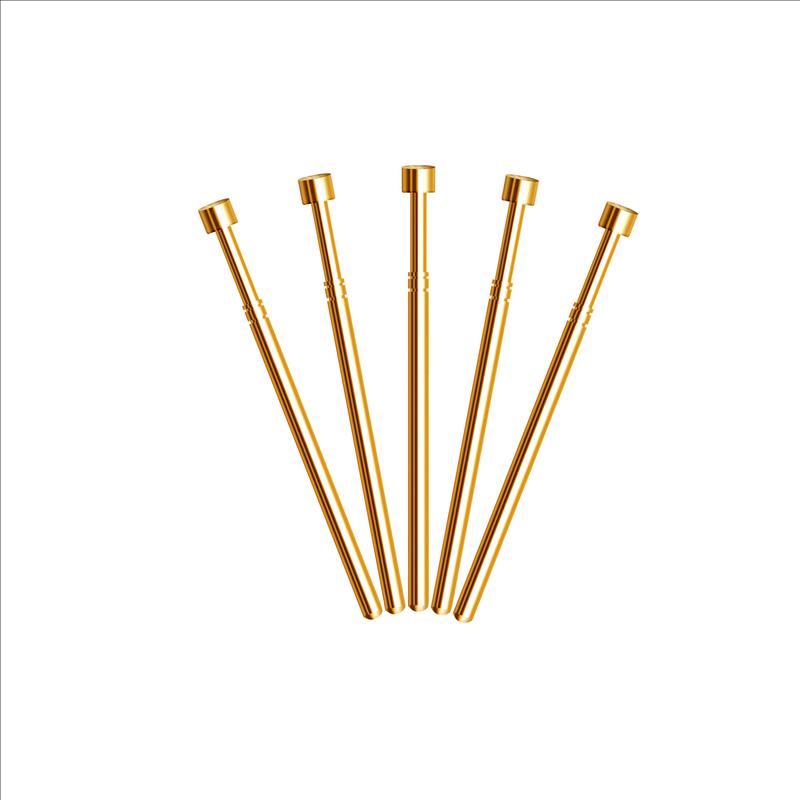

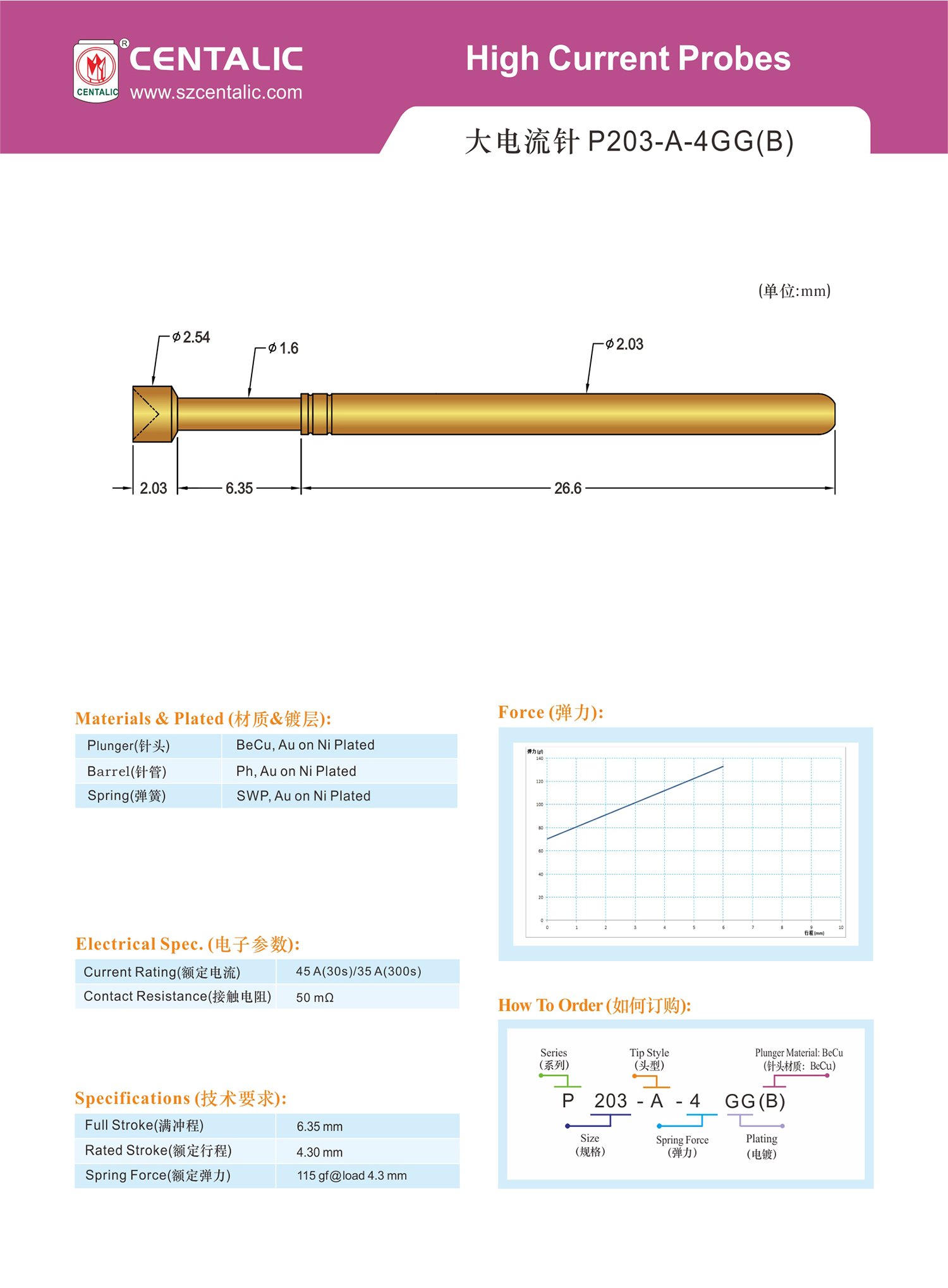

P203-A-4GG(B) Series

Technicial

Materials & Plated:

Plunger:BeCu,Au on Ni Plated
barrel:Ph,Au on Ni Plated

Spring:SWP, Au on Ni Plated


Electrical Spec.:

Current Rating:45A(30s)/35A(300s)

Contact Resistance:50 mΩ

Specifications

Full Stroke:6.35 mm

Rated Stroke:4.30 mm

Spring Force:115 gf@load 4.3 mm

Introduction
High Current Probe also known as "large current probe", is characterized by large test current and high temperature of test conditions. It is mainly used in the field of high temperature and high current online test, such as the test of photovoltaic new energy batteries, with the characteristics of large test current and high test temperature.
