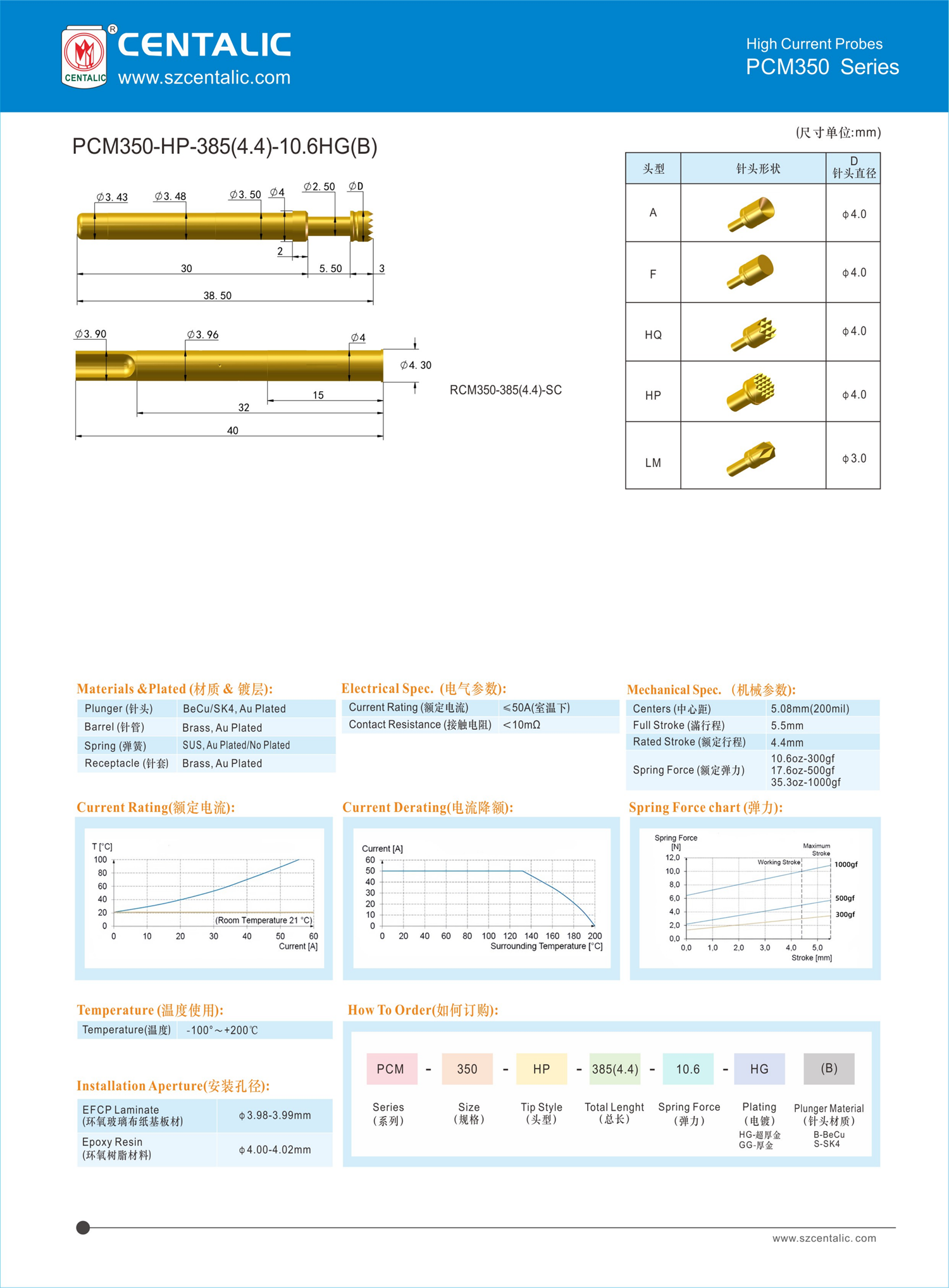

Technicial

Materials & Plated：

Plunger：Becu/SK4，Au Plated
barrel：Brass，Au Plated

Spring：SUS，Au Plated/No Plated

Receptacle：Brass，Au Plated

Electrical Spec.：

Current Rating：≤50 A(室温下)

Contact Resistance：＜10 mΩ

Specifications：
Centers：5.08 mm（200mil）

Full Stroke：5.5 mm

Rated Stroke：4.4 mm
Spring Force：10.6oz-300gf/17.6oz-500gf/35.3oz-1000gf

Temperature/Installation Aperture：
Temperature：-100°～＋200℃
EFCP Laminate：φ3.98-3.99mm
Epoxy Resin：φ4.00-4.02mm

Introduction
High Current Probe also known as "large current probe", is characterized by large test current and high temperature of test conditions. It is mainly used in the field of high temperature and high current online test, such as the test of photovoltaic new energy batteries, with the characteristics of large test current and high test temperature.
