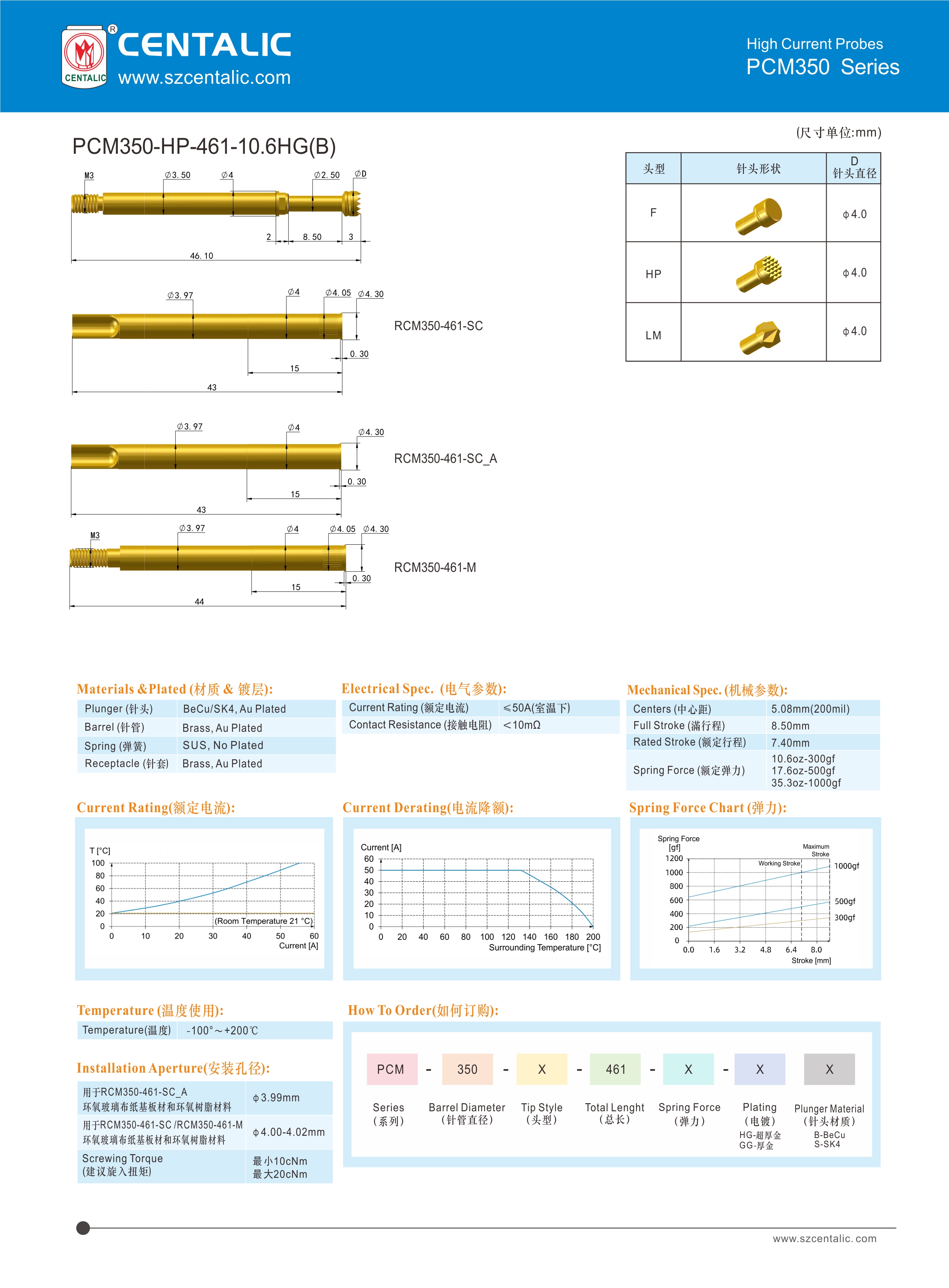

Technicial

Materials&Plated:

Needle (Plunger): eCu/SK4, Au Plated
Barrel: Brass,Au Plated

Spring: SUS, No Plated
Receptacle: Bras, Au Plated

Electronic parameters (Electrical Spec.):

Current Rating: ≤ 50 A (at room temperature)

Contact Resistance:< 10mΩ

technical requirement(Specifications)：
Centers: 5.08 mm (200mil)

Full stroke: 8.50mm

Rated stroke: 7.40mm
Rated Spring Force: 10.6oz-300gf/17.6oz-500gf/35.3oz-1000gf
Temperature/Installation Aperture:
Temperature: -100 ° C to+200 ° C
Used for RCM350-461-SC-A epoxy glass cloth paper-based board andepoxy materials： φ3.99mm
Used for RCM350-461-SC/RCM350-461-M epoxy glass cloth paper-based board andepoxy materials： φ4.00-4.02mm

Introduction

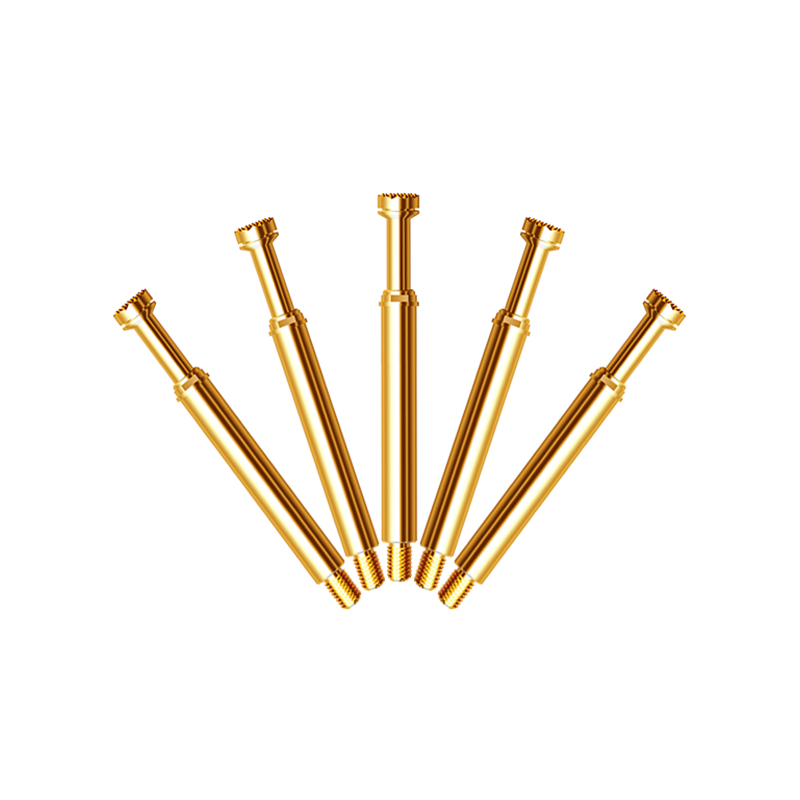

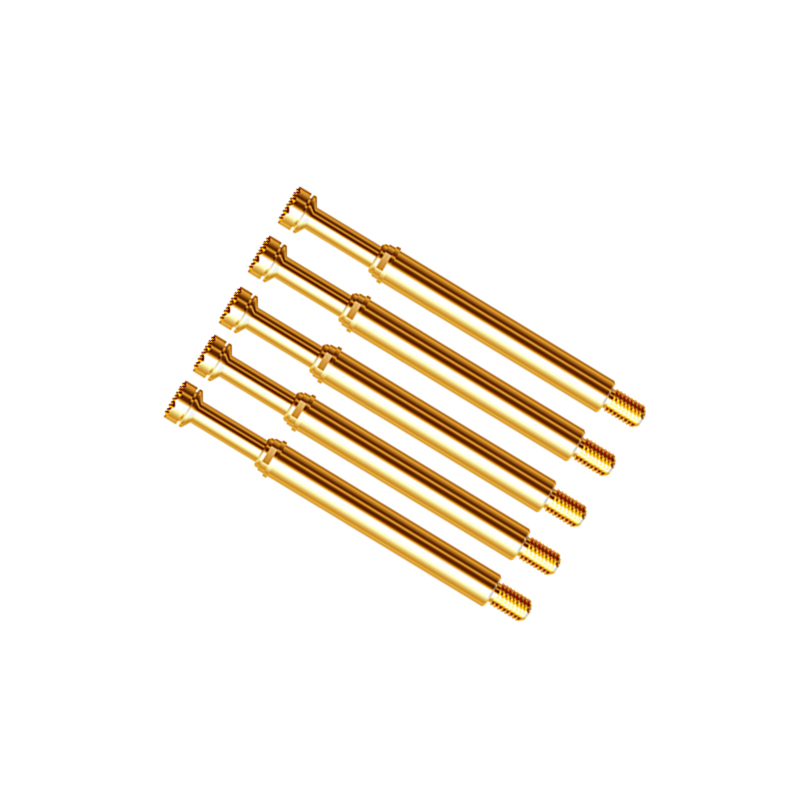

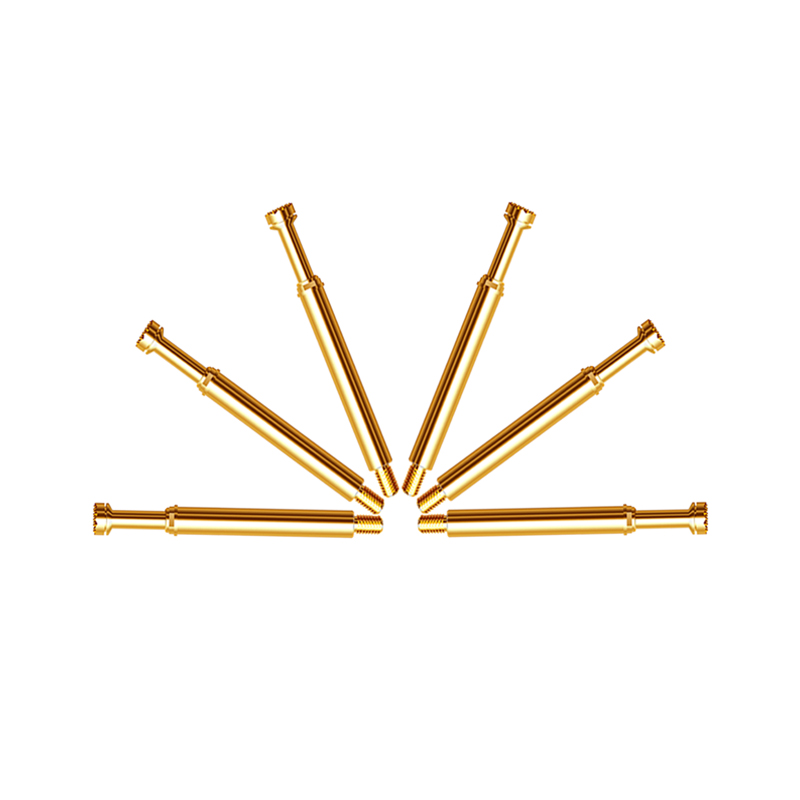

High Current Probe also known as "large current probe", is characterized by large test current and high temperature of test conditions. It is mainly used in the field of high temperature and high current online test, such as the test of photovoltaic new energy batteries, with the characteristics of large test current and high test temperature.
