Technicial

Materials&Plated:

Needle (Plunger): eCu/SK4, Au Plated
Barrel: Brass,Au Plated

Spring: SUS, Au Plated
Receptacle: Bras, Au Plated

Electronic parameters (Electrical Spec.):

Current Rating: ≤ 20 A (at room temperature)

Contact Resistance:< 10mΩ

technical requirement(Specifications)：
Centers: 2.54 mm (100mil)

Full Stroke: 4.50mm

Rated stroke: 3.50mm
Rated Spring Force: 5.3oz-150gf/8.8oz-250gf

Temperature/Installation Aperture:
Temperature: -100 ° C to+200 ° C
Epoxy glass cloth paper-based board andepoxy materials(EFCP Laminate AndEpoxy Resin)： φ2.00-2.02mm

Introduction

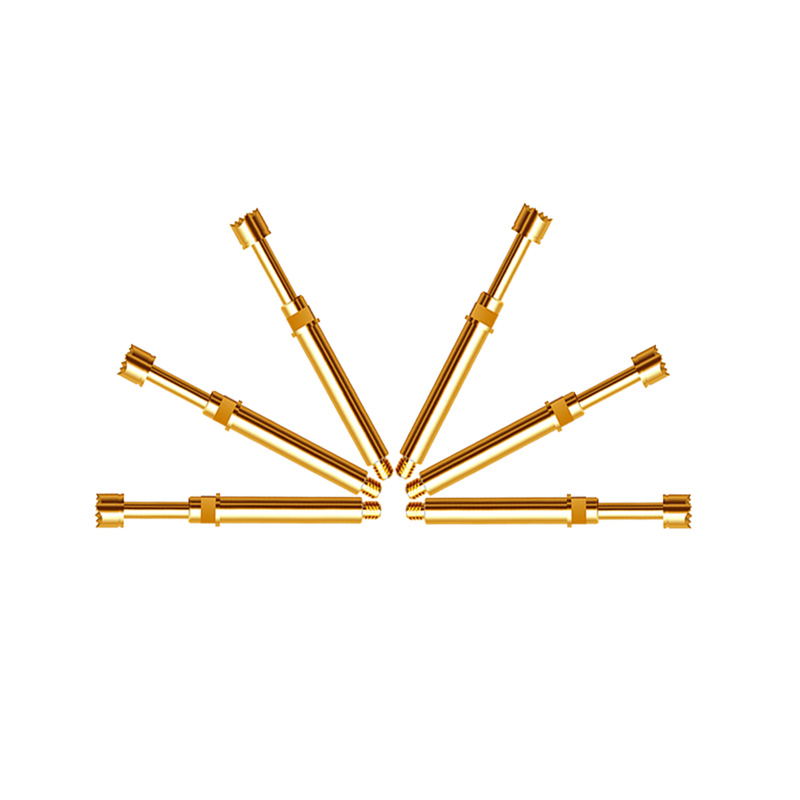

High Current Probe also known as "large current probe", is characterized by large test current and high temperature of test conditions. It is mainly used in the field of high temperature and high current online test, such as the test of photovoltaic new energy batteries, with the characteristics of large test current and high test temperature.
