Technicial

Materials & Plated：

Material：Ni Alloy

Plated：Au on Ni Plated

Electrical Spec.：

Current Rating：1.5 Amps

Contact Resistance：80 mΩ

Specifications：

Thickness：0.05 mm

Full Stroke：0.60 mm

Rated Stroke：0.40 mm

Rated Force：25 gf

Life Cycle：400000

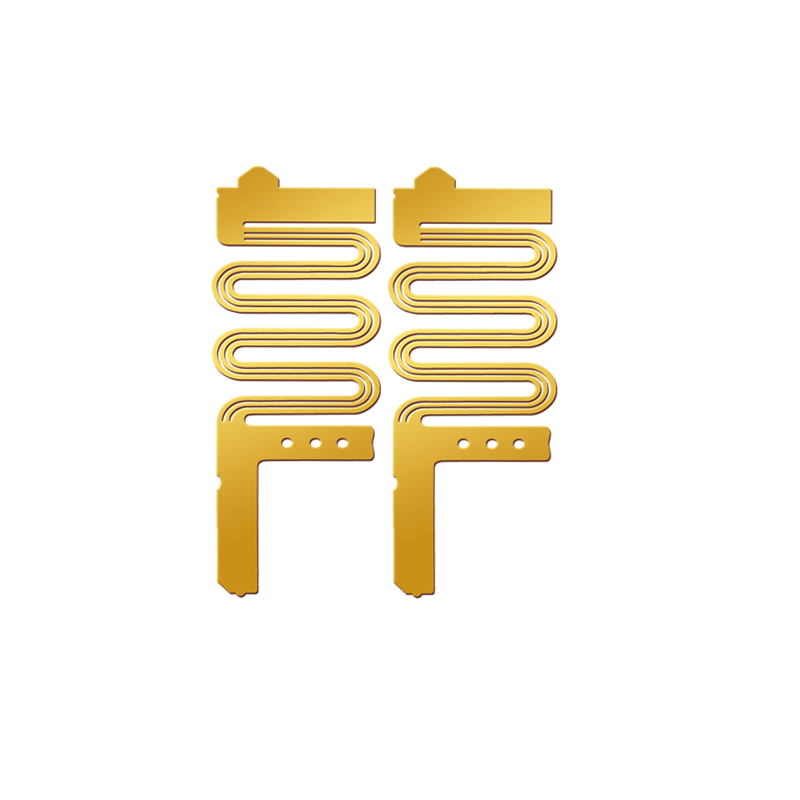

Introduction Thin spring probes are short for flat test probes, also called blade probes.They are characterized by smaller pitch, high efficiency, high stablity, long life,etc..They play a role in transmitting signals and conducting current. They are mainly used to test precision spacing connectors such as cellphones, chips, screens,etc..
